Hardline USAR Task Force Kit MHardline USAR Task Force Kit M

Hardline USAR Task Force Kit M

Multi-purpose, multi-user two-way voice communication and rescue system

Trusted multi-purpose communication system

Used by Federal Emergency Management Agency (FEMA), State urban search and rescue (SUSAR), and urban search and rescue (USAR) teams throughout North America and globally, the Savox USAR Task Force Kit M is a multi-purpose, multi-user Hardline communication system designed for:

  • Confined space rescue
  • Collapse structure rescue
  • Trench rescue
  • Mine rescue
  • High angle rescue
  • Shoring and tunneling
  • Victim location and communications

This comprehensive kit can be configured according to the type of rescue mission. The Savox USAR Task Force Kit M provides hands-free, full-duplex (simultaneous two-way) private communication between victims and rescuers.

This comprehensive kit can be configured according to the type of rescue mission. The Savox USAR Task Force Kit M provides hands-free, full-duplex (simultaneous two-way) private communication between victims and rescuers.

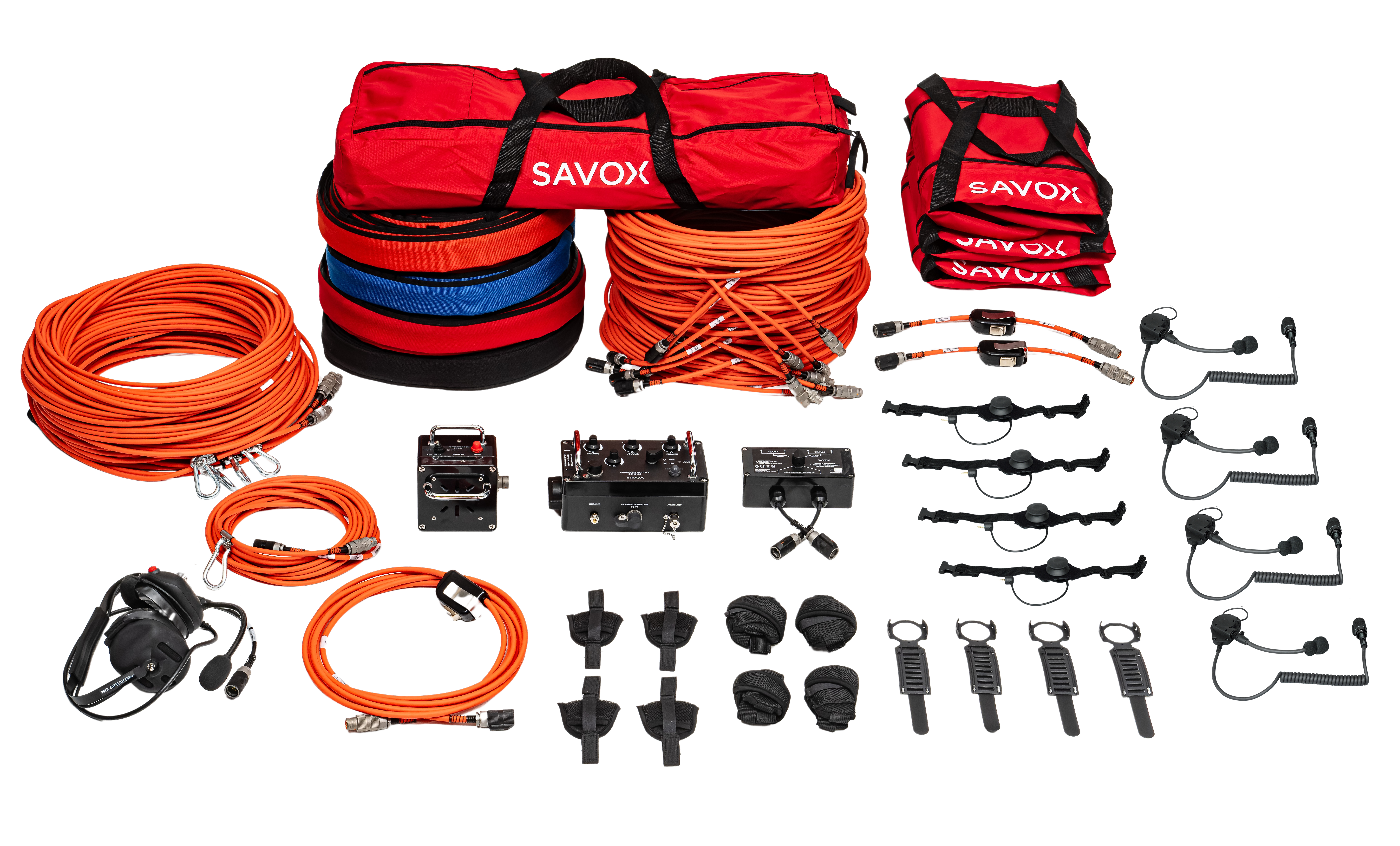

Kit components list

  • 1 x CSI-2100 command module
  • 1 x Power talk box
  • 1 x Double cable splitter with mic switch
  • 1 x Behind head headset single-side, 0,8 m (32") cord
  • 4 x Face mask rescue communication set with speaker
  • 4 x Speaker harness
  • 2 x 0,3 m (1') Operator extension cable with mic mute switch
  • 1 x 6 m (20') Operator extension cable with mute switch
  • 1 x 15 m (50') Cable with connectors, strain relief & snap hook
  • 4 x 30 m (100') Cable with connectors, strain relief & snap hook
  • 8 x 30 m (100') Cable with connectors
  • 1 x 1,5 m (18") Expansion cable with connectors
  • 1 x 30 m (100') Umbilical cover (black)
  • 1 x 30 m (100') Umbilical cover (red)
  • 1 x 30 m (100') Umbilical cover (blue)
  • 1 x 30 m (100') Umbilical cover (orange)
  • 1 x Rescue probe
  • 1 x Probe interface cable
  • 1 x Probe headset (behind-head) double-side with mute
  • 1 x 15 m (50') Probe cord with snap hook
  • 1 x Rope coupler for probe
  • 1 x Pipe coupler for probe – imperial
  • 1 x Cable bag for 30-91 m (100' – 300') cable
  • 1 x Task force kit case with foam

Certifications

  • Internationally certified

    Savox Hardline CSI-2000 systems and approved accessories are intrinsically safe certified in the United States, Canada, EU, UK, and Internationally as listed below.

    Note that the products must be powered by approved batteries to meet the certification requirements. For approved battery types, please refer to product-specific control drawings.

  • Canada

    Ex ia IIC T4 Ga
    Class I Division 1 Groups A‐D
    Temperature Code: T4
    Ambient Temperature: ‐20ºC < Ta < 40ºC

    According to standards:
    CSA C22.2#60079‐0:2019 Ed.4
    CSA C22.2#60079‐11:2014 Ed.2

  • United States

    Ex ia IIC T4 Ga
    Class I Division 1 Groups A‐D
    Temperature Code: T4
    Ambient Temperature: ‐20ºC < Ta < 40ºC

    According to standards:
    UL 913:2013 Ed.8 + R:06Dec2019
    UL 60079-0:2019 Ed.7+R:15Apr2020
    UL 60079‐11:2013 Ed.6 +R:28Mar2014

  • European Union

    ATEX certification
    ATEX II IG Ex ia IIC T4 Ga
    -20°C ≤ Ta ≤ +40°C

    According to standards:
    EN IEC 60079-0:2018
    EN 60079-11:2012

  • International

    IECEx certification
    IECEx Ex ia IIC T4 Ga
    -20°C ≤ Ta ≤ +40°C

    According to standards:
    IEC 60079-0:2017
    IEC 60079-11:2011

  •  UK

    UKEX certification
    UKEX II IG Ex ia IIC T4 Ga
    -20°C ≤ Ta ≤ +40°C

    According to standards:
    EN IEC 60079-0:2018
    EN 60079-11:2012
