CSI-2000 Fuel Cell Entry Kit
Dependable communication between a safety attendant and confined space workers in aircraft fuel cells
Safe and dependable communications
The Savox Hardline Fuel Cell Entry Kit includes all the essential equipment required to ensure safe and dependable two-way communication between a safety attendant and confined space workers. It supports one safety attendant and three or more fuel cell technicians, whether they are using breathing apparatuses or not, within a range of 25 meters. The Savox Hardline Fuel Cell Entry Kit can be utilized either untethered or in conjunction with supplied air respirators for routine maintenance and general entries in aircraft fuel cells.
For extended entry distances, additional lengths of cable can be added to the kit, allowing for a maximum length of 1000 meters or 3280 feet per channel. Cable reels for efficient cable management are also available.

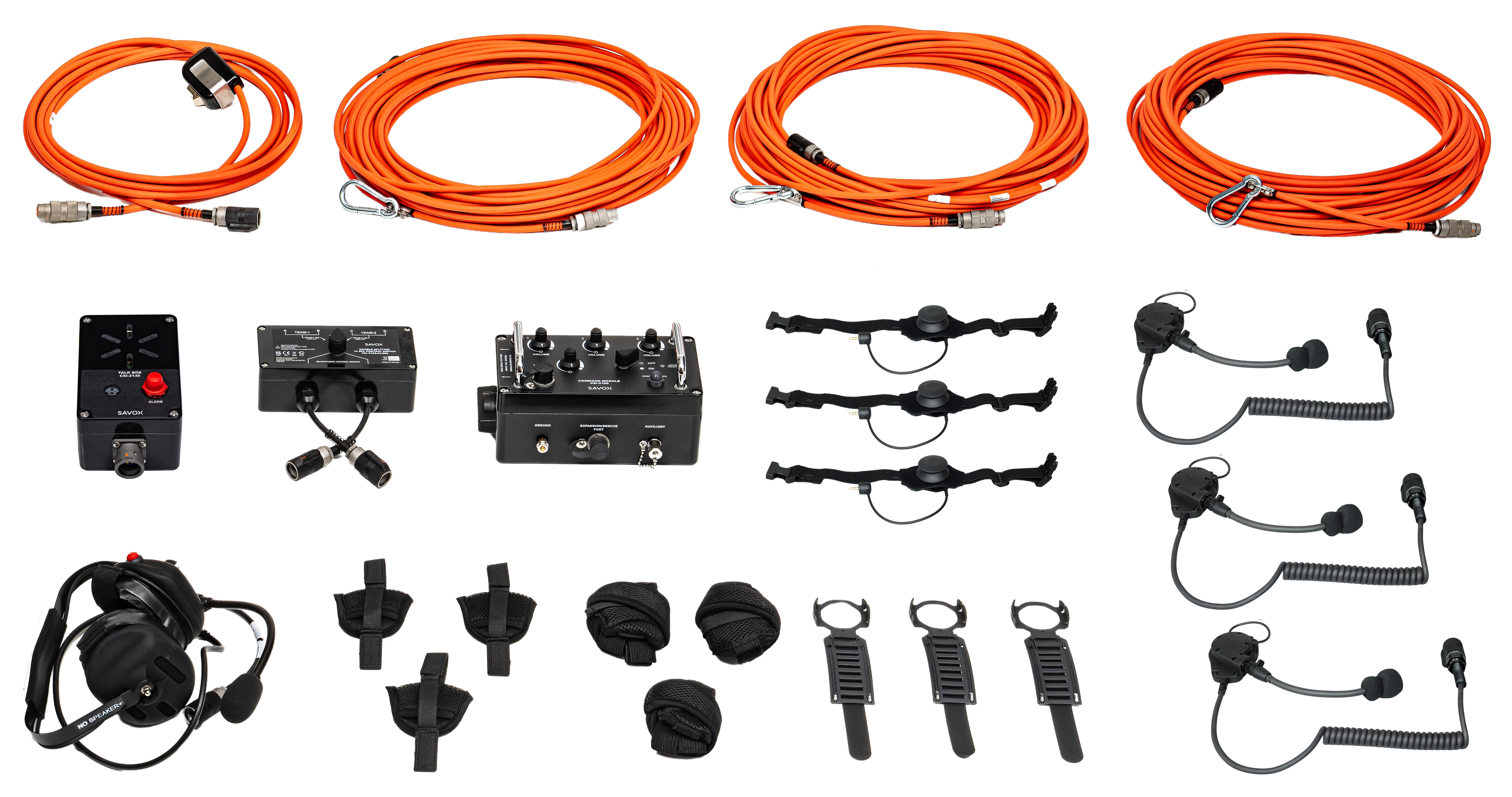

Kit components list
1 x CSI-2100 Command Module
1 x Talk Box
1 x Operator headset single-side, 0,8 m (32") cable
3 x Throat mic set with speaker3 x Speaker harness
1 x 6 m (20') operator extension cable with mute switch
3 x 25 m (82') cable with connectors with strain relief carabiner
1 x Protective Hard Case with foam
Certifications
Internationally certified
Savox Hardline CSI-2000 systems and approved accessories are intrinsically safe certified in the United States, Canada, EU, UK, and Internationally as listed below.
Note that the products must be powered by approved batteries to meet the certification requirements. For approved battery types, please refer to product-specific control drawings.
Canada
Ex ia IIC T4 Ga
Class I Division 1 Groups A‐D
Temperature Code: T4
Ambient Temperature: ‐20ºC < Ta < 40ºCAccording to standards:
CSA C22.2#60079‐0:2019 Ed.4
CSA C22.2#60079‐11:2014 Ed.2United States
Ex ia IIC T4 Ga
Class I Division 1 Groups A‐D
Temperature Code: T4
Ambient Temperature: ‐20ºC < Ta < 40ºCAccording to standards:
UL 913:2013 Ed.8 + R:06Dec2019
UL 60079-0:2019 Ed.7+R:15Apr2020
UL 60079‐11:2013 Ed.6 +R:28Mar2014European Union
ATEX certification
ATEX II IG Ex ia IIC T4 Ga
-20°C ≤ Ta ≤ +40°CAccording to standards:
EN IEC 60079-0:2018
EN 60079-11:2012International
IECEx certification
IECEx Ex ia IIC T4 Ga
-20°C ≤ Ta ≤ +40°CAccording to standards:
IEC 60079-0:2017
IEC 60079-11:2011UK
UKEX certification
UKEX II IG Ex ia IIC T4 Ga
-20°C ≤ Ta ≤ +40°CAccording to standards:
EN IEC 60079-0:2018
EN 60079-11:2012
