Savox Hardline CSI-2000/ Fuel Cell Entry Kit

Savox Hardline Fuel Cell Entry Kit contains the equipment necessary to provide safe, reliable, continuous two-way communication between a safety attendant and confined space workers. Supports one safety attendant and 3+ fuel cell technicians with or without breathing apparatuses to a distance of 25 meters.

The equipment can be used untethered or in conjunction with supplied air respirators for general entries and maintenance in aircraft fuel cells. Accessories are available for negative/positive fuel pressure testing. Additional lengths of cable can be added to the kit to further extend the entry distance to a maximum length of 1000 meters / 3280 ft. Cable reels for cable management available.



Key Benefits

  • Hands-free/full-duplex two-way voice communication.
  • Use in encapsulated suites with respirators or any make/model of breathing apparatus.
  • Intrinsically safe
  • Reliable communications in areas with poor radio coverage
  • Non-RF emitting
  • Chemical resistant
  • Reliable, rugged
  • Waterproof
  • Private network



Technical Information

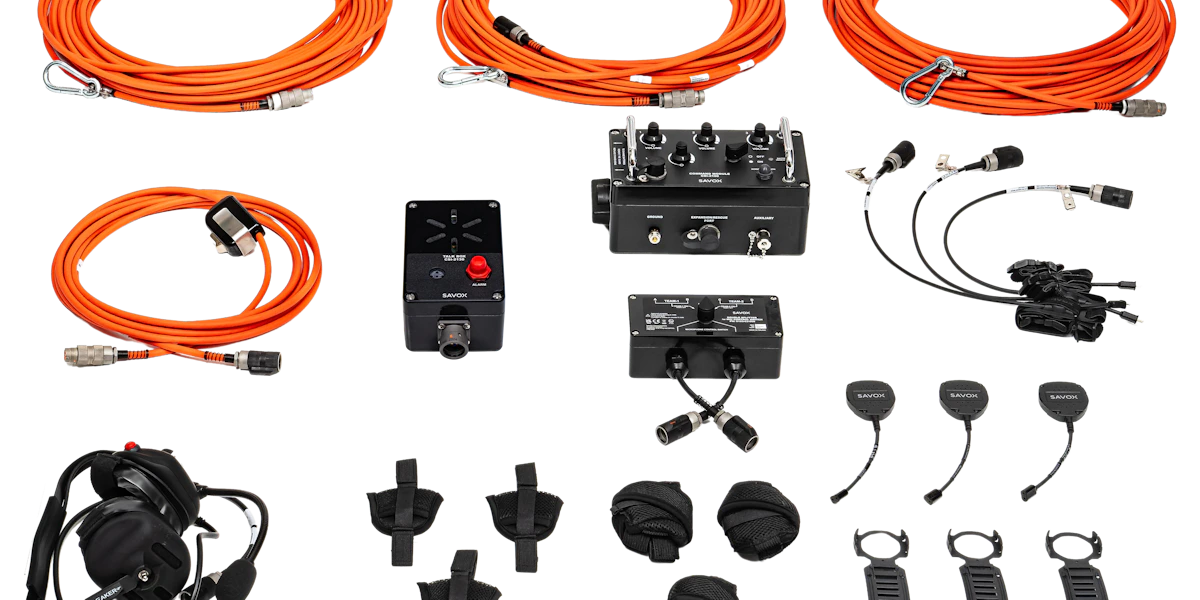

Kit Components List

CSI-2000 Fuel Cell Entry Kit

  • 1 x CSI-2100 Command module
  • 1 x Talk box module
  • 1 x Heavy Duty Headset - 32" cord, single side
  • 3 x Face Mask Rescue Set with speaker
  • 3 x Speaker harness
  • 3 x 25 m Cable with connectors, strain relief & snap hook
  • 1 x 20’ (6 m) Operator extension cable with mic mute switch
  • 1 x CSI-2000 Carry Case



Certification

Savox Hardline CSI-2000 Systems and approved accessories are Intrinsically Safe Approved in the United States, Canada, EU, UK, and Internationally as listed below.

Note that the products must be powered by approved batteries to meet the certification requirements. For approved battery types, please refer to product-specific Control Drawings.



Canada

Ex ia IIC T4 Ga
Class I Division 1 Groups A‐D
Temperature Code: T4
Ambient Temperature: ‐20ºC < Ta < 40ºC



According to standards:

CSA C22.2#60079‐0:2019 Ed.4
CSA C22.2#60079‐11:2014 Ed.2



United States


Ex ia IIC T4 Ga
Class I Division 1 Groups A‐D
Temperature Code: T4
Ambient Temperature: ‐20ºC < Ta < 40ºC



According to standards:

UL 913:2013 Ed.8 + R:06Dec2019
UL 60079-0:2019 Ed.7+R:15Apr2020
UL 60079‐11:2013 Ed.6 +R:28Mar2014



European Union

ATEX certification pending, available Q3/2022

Will be as follows:

ATEX II IG Ex ia IIC T4 Ga

-20°C ≤ Ta ≤ +40°C



According to standards:

EN IEC 60079-0:2018

EN 60079-11:2012

International

IECEx certification pending, available Q3/2022

Will be as follows:

IECEx Ex ia IIC T4 Ga

-20°C ≤ Ta ≤ +40°C

According to standards:

IEC 60079-0:2017

IEC 60079-11:2011


UK

UKEX certification pending, available Q3/2022

Will be as follows:

UKEX II IG Ex ia IIC T4 Ga

-20°C ≤ Ta ≤ +40°C

According to standards:

EN IEC 60079-0:2018

EN 60079-11:2012


Contact Savox for more information:
