Savox Hardline CSI-1000 General Industry Kit

Savox Hardline General Industry Kit is an one-on-one communication system configured specifically to help contractors work with greater efficiency and safety during operations in hazardous areas, especially where respirators or breathing equipment must be worn. The kit cab be expanded for one additional user adding the Additional Entrant Kit.

Equipment is lightweight, portable and extremely rugged. The hardline systems are intrinsically safe approved and allow full, hands-free communication between all users for up to 1500 feet. While the General Industry Kit can handle a maximum of three people, larger systems, using the CSI-2100, can be configured to handle up to fourteen people. In confined space applications, this allows one attendant to monitor entrants in adjacent spaces at the same time.

Key Benefits

• Hands-free/full-duplex two-way voice communication.
• Use in encapsulated suites with respirators or any make/model of breathing apparatus.
• Intrinsically safe
• Non-RF emitting
• Conforms to MIL-STD 461
• Chemical resistant
• Reliable, rugged
• Waterproof
• Private network

Technical Information

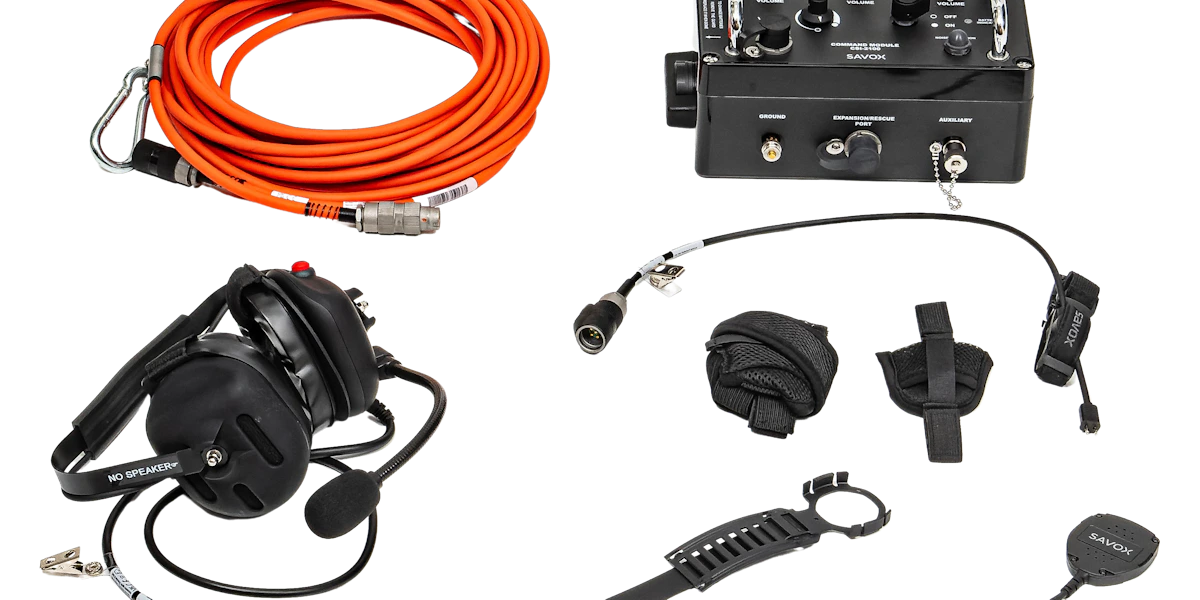

Kit Components List

• 1 x CSI-1100 mini module
• 1 x Behind head headset - 32" cord single side
• 1 x Face mask rescue comset wit hspeaker & alarm button
• 1 x Speaker harness
• 1 x 50' Cable with connectors, strain relief & snap hook

Certification

Savox Hardline CSI-2000 Systems and approved accessories are Intrinsically Safe Approved in the United States, Canada, EU, UK, and Internationally as listed below.

Note that the products must be powered by approved batteries to meet the certification requirements. For approved battery types, please refer to product-specific Control Drawings.

Canada

Ex ia IIC T4 Ga
Class I Division 1 Groups A‐D
Temperature Code: T4
Ambient Temperature: ‐20ºC < Ta < 40ºC

According to standards:

CSA C22.2#60079‐0:2019 Ed.4
CSA C22.2#60079‐11:2014 Ed.2

United States

Ex ia IIC T4 Ga
Class I Division 1 Groups A‐D
Temperature Code: T4
Ambient Temperature: ‐20ºC < Ta < 40ºC

According to standards:

UL 913:2013 Ed.8 + R:06Dec2019
UL 60079-0:2019 Ed.7+R:15Apr2020
UL 60079‐11:2013 Ed.6 +R:28Mar2014

European Union

ATEX certification

ATEX II IG Ex ia IIC T4 Ga

-20°C ≤ Ta ≤ +40°C

According to standards:

EN IEC 60079-0:2018

EN 60079-11:2012

International

IECEx certification

IECEx Ex ia IIC T4 Ga

-20°C ≤ Ta ≤ +40°C

According to standards:

IEC 60079-0:2017

IEC 60079-11:2011

UK

UKEX certification

UKEX II IG Ex ia IIC T4 Ga

-20°C ≤ Ta ≤ +40°C

According to standards:

EN IEC 60079-0:2018
