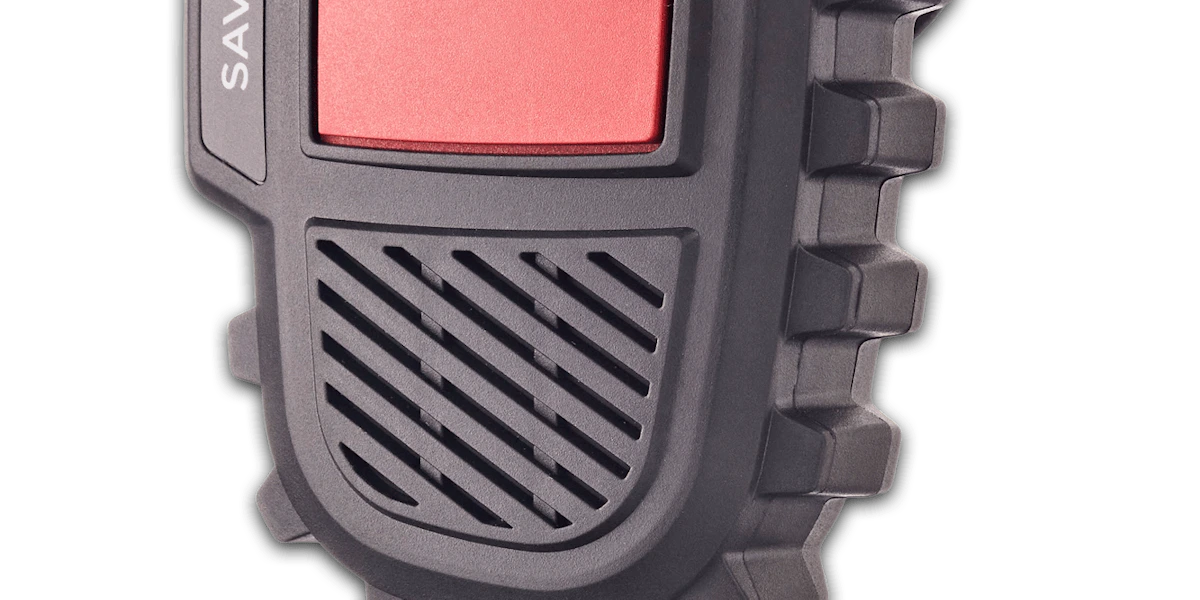

SAVOX C-C550/K1 Remote Speaker Mic

Product code: L551112-10B1100
The SAVOX C-C550 is a combined remote speaker microphone and body worn push-to-talk unit. It is rugged and has been extensively tested (MIL-STD-810G) to provide robust and reliable communications for professionals working in harsh conditions. The C-C550 is dust tight and submersible in water up to 1m (IP67). The SAVOX C-C550 enables effective remote communications with the radio positioned under clothing and when wearing heavy gloves. Remote activation of the radio’s emergency button (radio specific) provides an additional safety feature.

Key Benefits

  • Dust proof and water submersible (IP67)
  • Extremely rugged design and large PTT buttons
  • Excellent tactile feel and operation even with thick gloves
  • Exceptional speaker audio performance in noisy and harsh environments
  • MIL-STD-810 tested
Additional Information
Market Segment Public Safety
Product code L551112-10B1100
Size L 79 mm
Size W 37 mm
Size H 115 mm
Housing Material Fibre-Reinforced Plastic
Housing Colour Black
Weight 170 g
Environmental Tests Blowing Rain MIL810G 506.5, Procedure I, Blowing Sand MIL810G 510.5, Procedure II, Damp heat steady state MIL810G 507.5, Procedure I, Drop MIL810G 516.6, Procedure IV, Dust test MIL810G 510.5, Procedure I, Fluid contamination MIL810G 504.1, Procedure II (occasional contamination), High temperature (operational) MIL810G 502.5, Procedure II, A2, Immersion (IPx7) MIL810G 512.5, Procedure I, Mechanical Shock (Bump) MIL810G 516.6, Procedure I, Mechanical Shock MIL810G 516.6, Procedure I, Salt fog MIL810G 509.5, Solar radiation MIL810G 505.5, Procedure II A2, Thermal shock MIL810G 503.5, Procedure I-A, Vibration MIL810G 514.6, Procedure I, Category 24
Operational Temperature Min -40 C (-40 F)
Operational Temperature Max 85 C (185 F)
Ingress Protection IP66, IP67
Storage Temperature Min -25 C (-13 F)
Storage Temperature Max 70 C (158 F)
Protection Against Drop(fall) 1 meter
RX audio SPL( XXdB; X,X W; X,X m) 90dB/0.5W/0.2m
TX Audio, Microphone Sensitivity(XXdB +-XdB) -39dB +/-2dB
Microphone Type Omnidirectional
Headset Connector QR4+1 female
Connectivity Wired
Cable Type Coiled
Use Voltage 3.0...10.0VDC(0VDC for dynamic microphone)
Emergency Button No
Attachment/Fastening Clothing Clip
Compatible Radio Links Kenwood NX-220, Kenwood NX-320, Kenwood TH-21, Kenwood TH-25A, Kenwood TH-41, Kenwood TH-45, Kenwood TH-75, Kenwood TH-91A, Kenwood TK-208, Kenwood TK-2100, Kenwood TK-2102, Kenwood TK-2130, Kenwood TK-2160, Kenwood TK-2170, Kenwood TK-220, Kenwood TK-2202, Kenwood TK-2207, Kenwood TK-2306, Kenwood TK-2360, Kenwood TK-240, Kenwood TK-240D, Kenwood TK-248, Kenwood TK-250, Kenwood TK-259, Kenwood TK-260, Kenwood TK-260G, Kenwood TK-270, Kenwood TK-270G, Kenwood TK-272G, Kenwood TK-278, Kenwood TK-285, Kenwood TK-308, Kenwood TK-3100, Kenwood TK-3101, Kenwood TK-3102, Kenwood TK-3130, Kenwood TK-3131, Kenwood TK-3160
