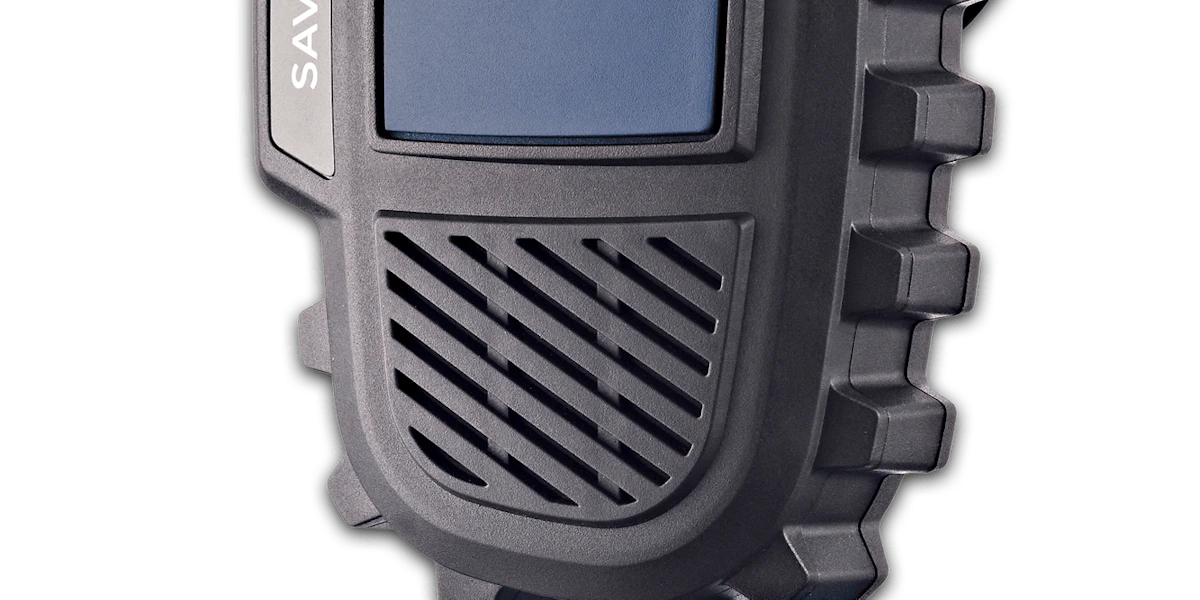

Savox C-C550/DT Remote Speaker Mic

Product code: L553003-11F1100
SAVOX C-C550/DT product variant is specifically designed to be compatible with Entel radios.
The SAVOX C-C550 is a combined remote speaker microphone and body worn push-to-talk unit. It is rugged and has been extensively tested (MIL-STD-810G) to provide robust and reliable communications for professionals working in harsh conditions. The C-C550 is dust tight and submersible in water up to 1m (IP67). The SAVOX C-C550 enables effective remote communications with the radio positioned under clothing and when wearing heavy gloves. Remote activation of the radio’s emergency button (radio specific) provides an additional safety feature. EX version of the C-C550 comes with dark blue PTT buttons.

Key Benefits
  • Dust proof and water submersible (IP67)
  • Extremely rugged design and large PTT buttons
  • Excellent tactile feel and operation even with thick gloves
  • Exceptional speaker audio performance in noisy and harsh environments
  • MIL-STD-810 tested
  • Ex version
Additional Information
Market Segment Public Safety
Product code L553003-11F1100
Size L 79 mm
Size W 37 mm
Size H 115 mm
Housing Material Conductive Plastic
Housing Colour Black
Weight 170 g
Operational Temperature Min -40 °C (-40 °F)
Operational Temperature Max 85 °C (185 °F)
Ingress Protection IP66, IP67
Storage Temperature Min -25 °C (-13 °F)
Storage Temperature Max 70 °C (158 °F)
Protection Against Drop(fall) 1 meter
RX audio SPL( XXdB; X,X W; X,X m) 90dB/0.5W/0.2m
TX Audio, Microphone Sensitivity(XXdB +-XdB) -39dB +/-2dB
Microphone Type Omnidirectional
Headset Connector QR4+1 female
Use Voltage 3.0...10.0VDC(0VDC for dynamic microphone)
Ex/IS ATEX / IECEx
Emergency Button Yes
Attachment/Fastening Clothing Clip
Price List Notes Ex II 2 GD Ex ib IIC T4 Gb Ex ib IIIC T99'C Db Ta: -20'C... +55'C
Compatible Radio Links Entel DT981, Entel DT982, Entel DT982FF, Entel DT982M, Entel DT985, Entel DT985FF, Entel DT985M
