Delsar LD3 2 Sensor Seismic/Acoustic Listening System

Product code: 6020-01-002

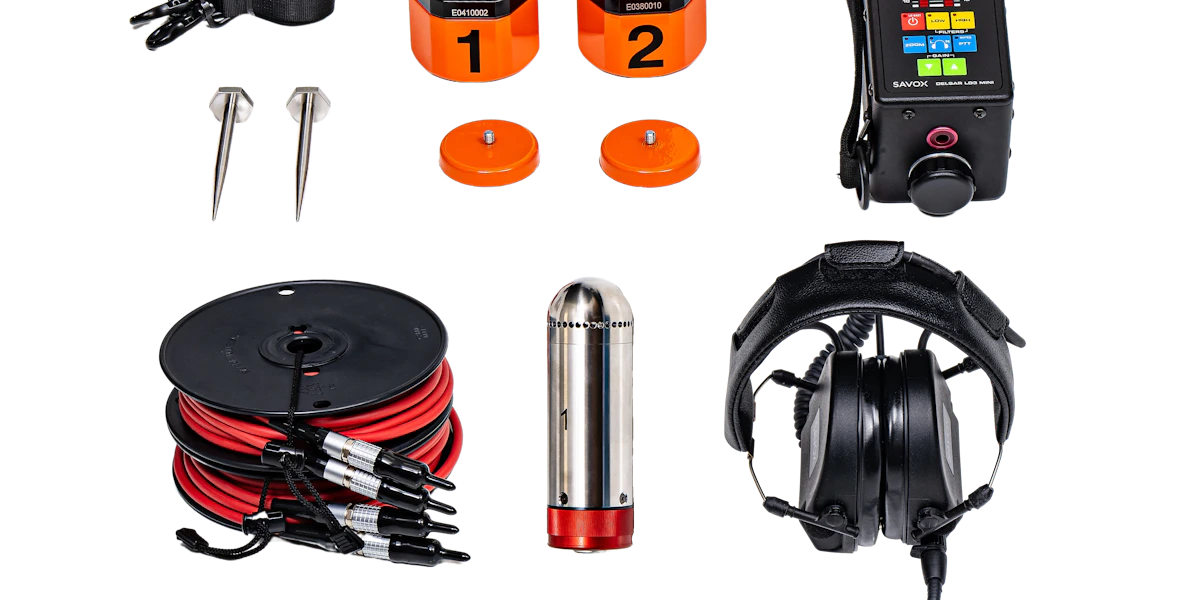

The Delsar Seismic/Acoustic Life Detector Kit contains the Delsar Life Detector System and the accessories, all in one ready to deploy case. The reliable and proven system is used by FEMA, SUSAR, USAR and rescue teams from around the world. The Delsar Life Detector seismic/acoustic listening system is used to detect and locate live victims trapped in:

  • Collapsed structures caused by earthquakes
  • Explosions
  • Landslides
  • Mine disasters or cave-ins

The Delsar Kit converts the entire collapsed structure into a large sensitive microphone that transmits noises from entombed victims. The seismic and acoustic sensors convert vibrations created by the live victim into audible and visual signals. The Delsar is rugged, reliable and able to withstand days of continuous use at the disaster site.

Key Benefits

  • Easy-to-read clear display panel
  • Equipped with 2 sensors
  • View simultaneously the strength from all sensors to ID the strongest signal
  • Noise reducing filters for better audio quality
  • Record last five minutes of audio
  • Twin headphone jacks
  • Lithium-ion batteries compatible with SearchCam 3000
Additional Information
Market Segment Public Safety
Product code 6020-01-002
Size L 635 mm
Size W 508 mm
Size H 229 mm
Weight 14.1 kg
Options DelsarĀ® Victim Simulator
Acoustic Sensor #2
Acoustic Search Sensor Yes
Seismic Search Sensor Yes
Two-way Victim Communications Yes
Delivered In a Heavy-duty Case Yes
Multi-sensor System for Detection & Location Yes
Number of Channels Monitored Simultaneously 6
Dual Inputs for Sensor Deployment Flexibility Yes
Number of Seismic Sensors 2
Number of Acoustic Sensors 1
Maximum Number of Acoustic Sensors 2
Number of Headset Connectors 2
Stereo Sound Yes
Recording Capability Yes
Recording Capability 5 minutes
Seismic Sensor Frequency Min 10 Hz
Seismic Sensor Frequency Max 3000 Hz
Acoustic Sensor Frequency Min 80 Hz
Acoustic Sensor Frequency Max 4500 Hz
High Pass Filter Yes
Low Pass Filter Yes
Compatible with Sensor Spike Yes
Compatible with Magnetic Sensor Clamp Yes
